check weigher
Automatic weighing scale, also known as weight sorting machine. It is an automatic weight inspection equipment widely used in the pharmaceutical, food, chemical and other industries. Real time online
- Brand： glzon
- Model： GZM

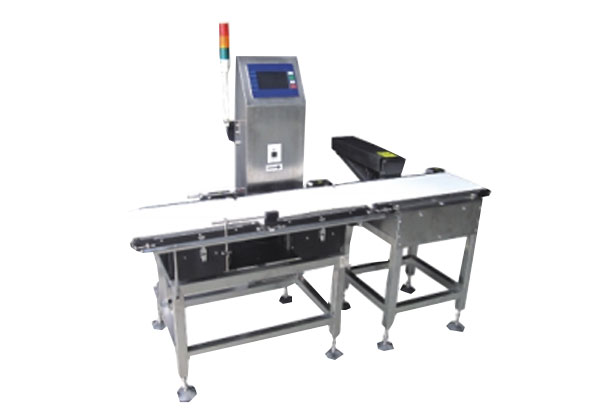

Checkweigher CW-9000 Series
Shanghai Guangzhi Automation
Core Value: Precision That Pays for Itself
Achieve ±0.1g accuracy at 600 units/min with AI-driven giveaway control. Reducing overfill by 99% and eliminating underweight recalls, our system cuts quality costs by $3.6M/year for a typical pharma/food plant.
Technical Highlights
1. Hyper-Accurate Weighing
| Innovation | Performance |
|---|---|
| EMFR Load Cells (OIML Class Y) | ±0.05g repeatability (1g-5kg) |
| AI Vibration Cancellation | 99.5% noise rejection (ISO 10816) |
| Airflow Stabilization | ±0.2g in 2.5m/s drafts |
2. Smart Rejection Ecosystem
Dynamic Tolerance Adjustment:
Auto-tightens limits when Cp >1.33
Saves 0.8% material giveaway
3. Industry-Specific Builds
| Sector | Key Feature | Compliance |
|---|---|---|
| Pharmaceuticals | 316L SS (Ra≤0.4μm) + SIP | FDA 21 CFR Part 11 |
| Food | IP69K washdown + allergen purge | FSSC 22000 |
| Chemicals | ATEX Zone 22 (Ex tc IIIC) | IECEx T4 |
Specifications
| Model | Micro CW-9100 | Mid-Range CW-9200 | Heavy CW-9300 |
|---|---|---|---|
| Range | 0.1g-5kg | 5g-20kg | 1-50kg |
| Accuracy | ±0.1g | ±0.5g | ±5g |
| Speed | 600 ppm | 400 ppm | 200 ppm |
| Reject Type | Air blast | Pusher arm | Robotic pick |
| Power | 100-240VAC, 1kW | 200-480VAC, 2.2kW | 400VAC, 4kW |
Operational Impact
Top 5 Vaccine Producer:
Reduced overfill from 1.5% to 0.05%
Saved $2.1M/year in API costs
Achieved ROI in 17 weeks
Why Choose CW-9000?
? AI Giveaway Control: Saves 0.5-2% material costs
? Zero Recalls: 100% weight compliance tracking
? 50% Faster Changeover: Tool-less lane adjustment
? Global Cert: OIML R51/FDA/CE/ATEX
