Shanghai Guangzhi’s Automatic Line fills & caps trigger spray bottles at 120 bpm with ±0.1ml accuracy. Features leak-testing, torque control & FDA-compliant CIP.
Shanghai Guangzhi Automation's turnkey solution combines precision filling, torque-controlled capping, and 100% quality inspection for trigger spray bottles (20-500ml). Engineered for cleaning agents, pesticides, and cosmetic mists, this synchronized line achieves 120 bottles/min with FDA/ISO 15378 compliance, reducing labor costs by 55%.
1. Precision Filling Station
±0.1ml Volumetric Accuracy: Servo-piston technology handles viscosities 1-5,000 cP.
Nozzle Anti-Clog System: Recirculation loop for suspensions/particulates (e.g., floor cleaners).
2. Intelligent Capping System
Torque Control (0.2–6.0 N·m): Servo-driven chuck adapts to child-safe/tamper-evident caps.
Vision-Guided Alignment: Locates spray head orientation (±1°) for actuator-slot matching.
3. In-Line Quality Assurance
| Test | Technology | Standard |
|---|---|---|
| Leak Test | Vacuum decay sensor | ±0.05 kPa sensitivity |
| Fill Level | Laser micrometry | ±0.3mm accuracy |
| Cap Seal Integrity | Pressure decay & CO? sniffing | USP <1207> compliant |
4. Hygienic Design
CIP/SIP Ready: 316L stainless steel + automated spray ball system.
Cross-Contamination Prevention: Modular quick-release tooling (<5 min changeover).
| Module | Specification |
|---|---|
| Filling Range | 20–500ml (±0.5%) |
| Capping Speed | 120 bottles/min |
| Bottle Compatibility | PET/HDPE (?25-65mm × H70-200mm) |
| Cap Types | Trigger sprayers (28-53mm ?), tamper bands |
| Power Supply | 380V/50Hz, 12kW |
| Air Consumption | 150 L/min @ 0.7MPa |
| Line Footprint | 8500×2200×2500mm (L×W×H) |
| OEE | ≥92% (measured at 24/7 operation) |
| Product | Filling Solution | Cap Handling Feature |
|---|---|---|
| Bleach Cleaners | Corrosion-resistant ceramic pistons | Vapor extraction hood |

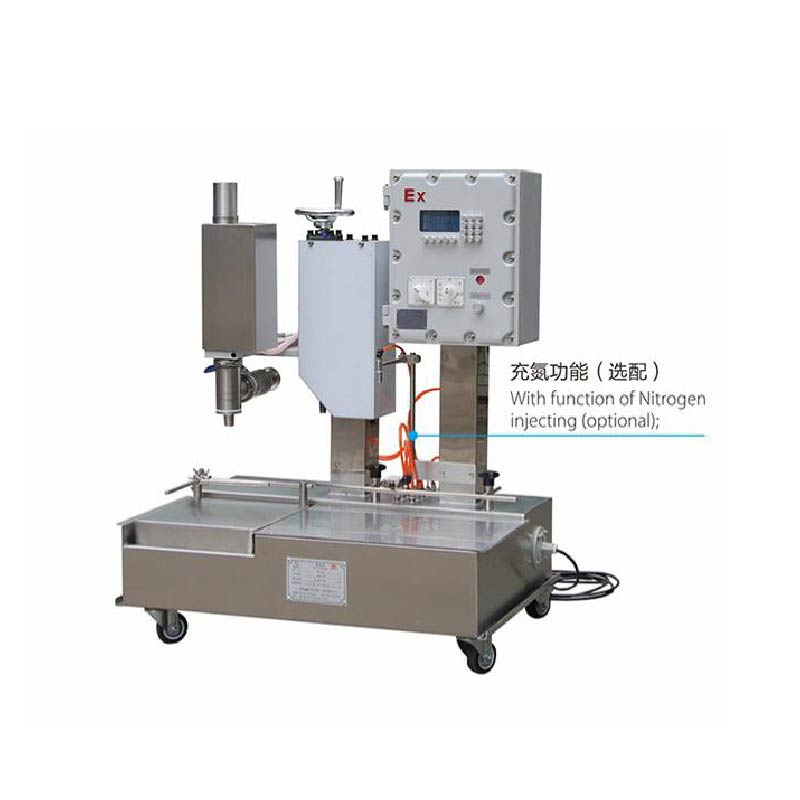

| Oil-Based Sprays | Nitrogen blanketing (O? <0.5%) | Anti-static ionizer bar |
| Fragrance Mists | Laminar flow anti-aeration nozzles | Odor containment enclosure |
Case Study: US Detergent Manufacturer
Challenge: 12% cap seal failures in 250ml bleach spray bottles
Solution: Integrated pressure decay testing + servo torque adjustment
Results:
0.2% defect rate
40% reduced compressed air usage
ROI in 8 months
| Certification | Compliance Scope |
|---|---|
| FDA 21 CFR 210/211 | Pharmaceutical-grade validation |
| ISO 22715 | Cosmetic packaging traceability |
| ATEX Zone 22 | Combustible dust protection |
| Critical Options | Function |
|---|---|
| Robotics Palletizing | 50 cases/hour auto-stacking |
| Anti-microbial coating | For ISO 13485 medical devices |
| Track-and-Trace Serialization | RFID/UHF tagging |
Global Support:
24/7 remote diagnostics with real-time OEE dashboards
Sanitary spare kit (seals/nozzles) shipped in 48h
