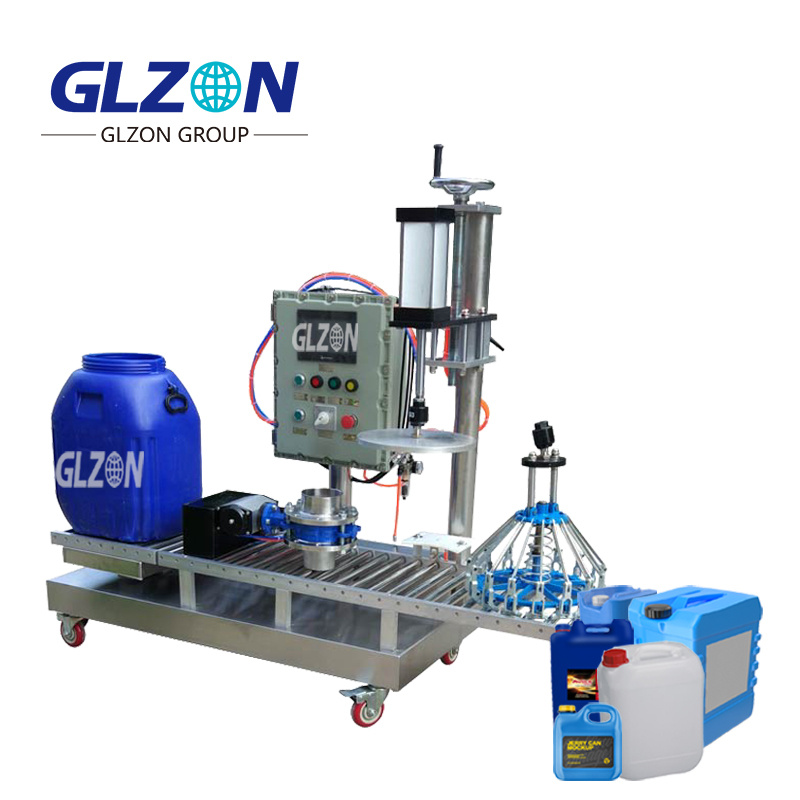

Automatic Lid Pressing System for 5– 20L Pail and Jerrycan Capping
Automatic lid sealer: 60 pails/hour, ±0.3% torque accuracy. Vision-guided, ATEX/FDA certified. Zero leaks guaranteed. Free demo!
- Brand： glzon
- Model： GZM_30L
AutoSeal Pro AS-600 Series
Automatic Lid Pressing System for 5-20L Pails & Jerrycans
High-Speed Sealing | Precision Torque Control | Zero Leaks Guaranteed
Technical Specifications
Parameter | AS-610 (Standard) | AS-620X (ATEX) | AS-630F (Food Grade) |
|---|---|---|---|
Capacity | 5-20L Containers | Same | Same |
Throughput | 60 units/hour | 55 units/hour | 58 units/hour |
Lid Types | Screw Caps, Snap Lids, Drum Lids | Same + Child-Resistant | Tamper-Evident Seals |
Torque Range | 5-50 N·m (±0.3%) | 5-60 N·m (±0.4%) | 3-40 N·m (±0.2%) |
Seal Force | 200-1500 N (±1%) | Same | 150-1200 N |
Cycle Time | 6 sec/unit | 6.5 sec/unit | 6.2 sec/unit |
Accuracy | ±0.3% Angular Rotation | ±0.4% | ±0.2% |
Material Contact | Powder-Coated Steel | 304 SS | 316L SS + FDA UHMW-PE |
Power | 400V/50Hz, 3.5kW | 24VDC Ex ia | 400V/50Hz, 3.2kW |
Air Consumption | 120 L/min @ 0.6MPa | 100 L/min | 110 L/min |
Leak Test Pressure | 0.8 bar (ISO 8317) | 1.0 bar | 0.9 bar (ASTM F2095) |
Changeover Time | <90s (Tool-Free) | <100s | <85s |
Footprint (L×W×H) | 1800×1200×2200mm | 1900×1300×2300mm | 1800×1200×2200mm |
Core Innovations
1. VisionTork? Adaptive Sealing
Precision Features:
3D Lid Alignment: ±0.1mm positioning accuracy
Cross-Thread Prevention: Auto-reverse at >15% friction increase
Deformation Compensation: AI-based material flex algorithm
2. Universal Quick-Change System
Tooling Kit | Compatibility | Swap Time |
|---|---|---|
Round Pail (?200-300mm) | 5-20L pails | 45s |
Jerrycan (Rectangular) | 10-30L containers | 50s |
Drum Lid (?80-120mm) | 20-220L drums | 60s |
Industry-Specific Solutions
Chemicals & Lubricants
Feature | Technology |
|---|---|
Vapor Containment | Kalrez? gaskets + N? assist |
Static Control | Ionized Air Curtain (<10? Ω) |
ATEX Compliance | Pressurized Cabin (Zone 2) |
Paints & Coatings
Anti-Skinning Mode:
O? <0.5% headspace control
Ultrasonic seam sealing
Color-Coded Cap Recognition
Food & Pharma
Component | Certification |
|---|---|
Contact Surfaces | EHEDG EL Class I |
Cleanability | 20-min CIP Cycle |
Allergen Control | Dedicated Tool Sets |
Smart Control System
10" HMI with SealOS?
Data Intelligence:
OEE Dashboard:
Metric
Performance
Uptime
99.5%
Reject Rate
<0.03%
Anomaly Detection:
Issue
Resolution
Cap Damage
Auto Tool Retraction
Torque Drift
Instant Calibration
Performance Validation
PPG Coatings Case Study:
*"After 6 months using AS-610:
Output: 20 → 60 pails/hour (+200%)
Leakage Rate: 2.8% → 0.05%
Cap Damage: 0**
ROI: 4 months"*
Certifications
? ATEX 2014/34/EU (Zone 2) ? FDA 21 CFR 177.2600 ? ISO 9001:2015 ? CE EN 415-7 ? ANSI/UL 2054 Child-Resistant
Line Integration
1. Conveyor Infeed → 2. Vision Positioning → 3. Auto Lid Placement → 4. Servo-Controlled Pressing → 5. Pressure Decay Test → 6. Reject Sorting → 7. Palletizing
Cycle Time: 6 seconds/unit
Pricing & ROI
Model | Base Price | ROI Period | Key Feature |
|---|---|---|---|
AS-610 | $42,500 | 4 months | 60 units/hour |
AS-620X | $58,000 | 5 months | ATEX Zone 2 |
AS-630F | $49,800 | 4.5 months | EHEDG Certified |
Cost Savings:
? Labor Reduction: - Manual: 3 operators → Automated: 0.5 FTE - Savings: $38,000/year ? Material Savings: - Cap damage: $9,000/year - Product leakage: $24,000/year
