Automatic Inline Capper
Guangzhi’s Automatic Inline Capper: AI-driven 60+ containers/minute sealing with ±0.2mm accuracy. FDA/CE/GMP compliant. 85% labor reduction.
- Brand： glzon
- Model： GZM-50V

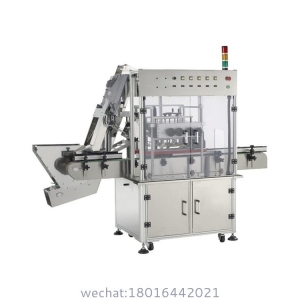

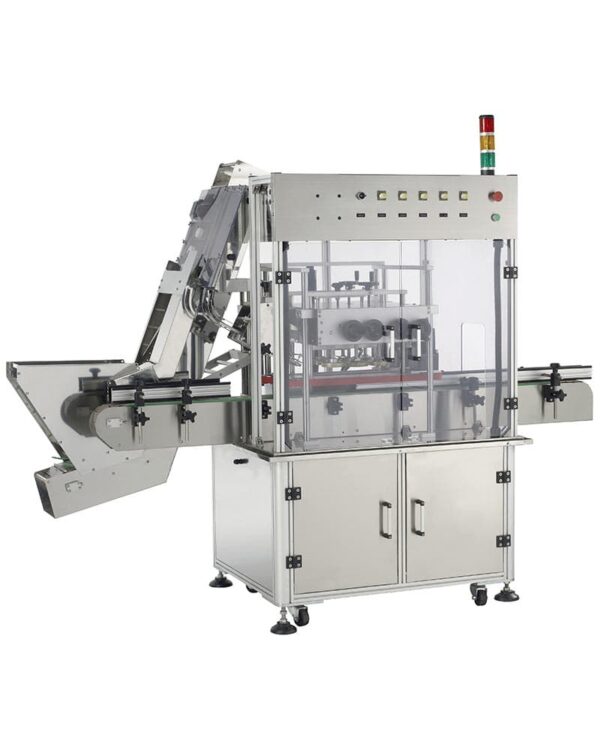

Product Introduction: Automatic Inline Capper GZ-CAP Series
High-Speed, Zero-Defect Capping for Seamless Production Lines
Shanghai Guangzhi Automation’s GZ-CAP Series Automatic Inline Capper delivers precision cap application at 60+ containers/minute with ±0.2mm alignment accuracy. Designed for bottles, jars, and tubes in food, pharma, and chemical industries, this system integrates AI vision, servo torque control, and tool-free changeovers to eliminate leaks, reduce labor costs by 85%, and ensure 100% tamper-evident compliance.
Core Technologies
AI Vision-Guided Positioning
5MP cameras scan cap/orifice alignment in real-time; auto-correct skewed containers
Rejects defective caps (chipped threads, missing liners) at 0.1s/container
Adaptive Torque Control
Servo-driven spindles with ±2% torque accuracy (5–60 N·m range)
Self-adjusts for cap tolerance variations (±0.5mm)
Tool-Free Changeover System
Quick-release chuck system swaps cap heads in <90 seconds
Handles 15+ cap types: screw, snap-on, ROPP, pump, flip-top
Hygienic IP69K Design
316L stainless steel contact parts; FDA/EC1935 compliant
Drainable surfaces + CIP-ready for washdown environments
IoT Smart Hub
10" HMI with OEE dashboards, torque trend analysis, and remote diagnostics
Technical Specifications
| Parameter | Standard Model | Pharma-Grade Option |
|---|---|---|
| Throughput | 60 containers/minute | 45 containers/minute |
| Container Compatibility | ?20–150mm; H40–320mm | ?15–100mm (vials/tubes) |
| Cap Types | Screw, Snap, ROPP, Crown | Child-resistant, Lyophilized stoppers |
| Torque Accuracy | ±2% (5–60 N·m) | ±1% (0.5–20 N·m) |
| Power Supply | 380V/50Hz, 2.2 kW + 0.6 MPa air | |
| Changeover Time | <90 seconds | <120 seconds |
| Compliance | CE, ISO 9001, FDA 21 CFR | GMP Annex 1, ISO 15378 |
| Footprint (L×W×H) | 1,800 × 1,200 × 1,600 mm |
Industry Applications
Food & Beverage:
Tamper-proof sealing of sauces, oils, and beverages (torque: 8–25 N·m)
Steam sterilization for hot-fill jars
Pharmaceuticals:
Sterile vial capping in isolators (GMP Grade A/B)
Nitrogen purging for oxygen-sensitive drugs
Chemicals:
Child-resistant closures for solvents
ATEX-compliant motors for explosive zones
Cosmetics:
Precision pump actuator installation
Operational Advantages
| Feature | Impact |
|---|---|
| Leak Prevention | 0 ppm failure rate (ISO 9001 validated) |
| Labor Reduction | Replaces 6 manual capping stations |
| Material Savings | 15% cap waste reduction vs. conventional systems |
| 24/7 Uptime | Self-lubricating spindles; MTBF >20,000 hrs |
| Sustainability | 40% less energy vs. pneumatic systems |
Safety & Customization
Standard Safety:
Laser guards (ISO 13849-1 PLd)
Emergency stop circuits
|Cap jam detection with auto-reverseUpgrade Modules:
ATEX Package: Explosion-proof for Zone 1/21
Inert Gas Chamber: O? <0.5% for pharma
Vision Inspection: QR code/leak verification
