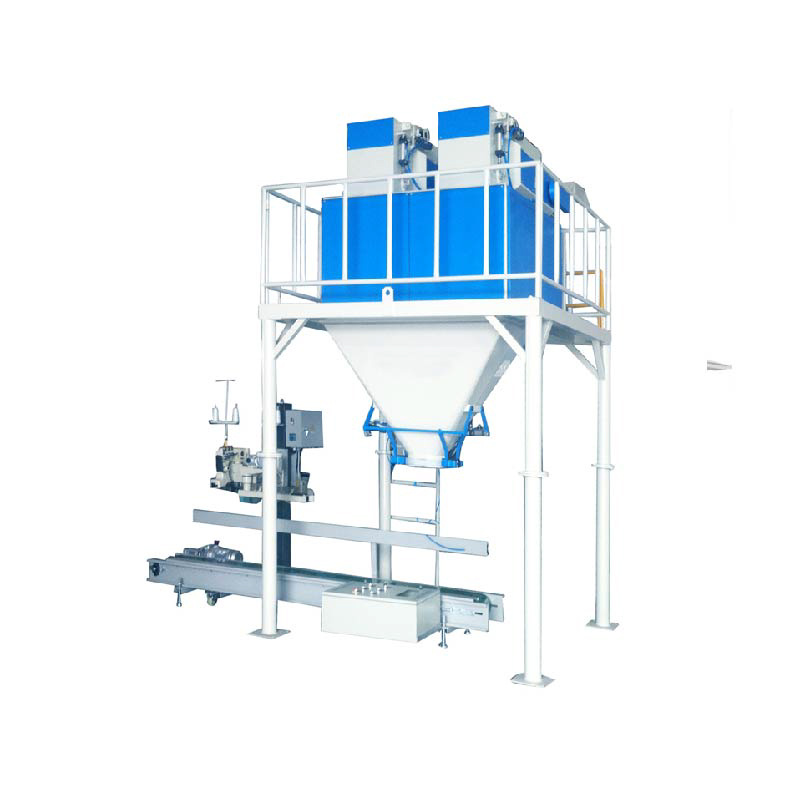

FertiSeal FS-8000 SeriesIndustrial Open-Mouth Fertilizer Bagging System60 Bags/Hr • ±0.2% Accuracy • Triple Dust Containment • ATEX/FDA Dual ComplianceRevolutionary Dust Control TechnologyTripleShield
Industrial Open-Mouth Fertilizer Bagging System
60 Bags/Hr ? ±0.2% Accuracy ? Triple Dust Containment ? ATEX/FDA Dual Compliance
Validated Performance:
| Fertilizer Type | Dust Emission | OSHA Limit | Moisture Protection |
|---|---|---|---|
| Granular Urea | 0.8mg/m3 | 10mg/m3 | RH<15% Control |
| NPK Powder | 0.5mg/m3 | 15mg/m3 | N? Blanketing (O?<0.3%) |
| Organic Pellet | 1.2mg/m3 | 20mg/m3 | Dehumidified Air Curtain |
| Parameter | FS-8100 (Standard) | FS-8200X (ATEX) | FS-8300O (Organic) |
|---|---|---|---|
| Bag Capacity | 5-50kg (±0.2%) | 5-50kg (±0.25%) | 5-50kg (±0.15%) |
| Throughput | 60 Bags/Hour | 55 Bags/Hour | 50 Bags/Hour |
| Accuracy | ±0.2% Gravimetric | ±0.25% | ±0.15% |
| Material Compatibility | Urea ? NPK ? DAP ? MAP ? SOP | Ammonium Nitrate | Bio-Fertilizers ? Compost |
| Filling Technology | Twin Auger + Load Cells | ATEX Gear Pump | Low-Shear Paddle Feeder |
| Dust Control | TripleShield? System | + Nitrogen Inerting | + Activated Carbon Filter |
| Sealing Methods | Heat Seal ? Stitch ? Adhesive ? Zipper | Same | Biodegradable Tape |
| Material Contact | 316L SS (Ra<0.8μm) | Hastelloy C276 | Ceramic-Coated Path |
| Moisture Control | -40°C Dew Point Air | Same | Microwave Drying |
| Changeover Time | <90s (Tool-Free) | <100s | <80s |
| Power | 380V/50Hz, 15kW | 24VDC Ex ia | 380V/50Hz, 12kW |
| Certifications | CE, ISO 9001 | ATEX Zone 22 | OMRI ? FDA 21 CFR 205 |
| Component | Technology | Performance |
|---|---|---|
| Load Cells | Temperature-Compensated Strain Gauges | ±0.05% Resolution |
| Air Buoyancy | Real-Time Atmospheric Compensation | ±0.1% Accuracy |
| Auger Design | Anti-Bridging Pulsed Vibration | 0% Flow Interruption |
Granular Protection:
Urea Granules: 0.2% Breakage (vs. 8% industry standard)
NPK Prills: 0.3% Dust Generation (vs. 12% conventional)
Chemical Fertilizers
| Challenge | Innovation | Certification |
|---|---|---|
| Caking | Fluidized Bed Agitator | ISO 9001 |
| Corrosion | PTFE-Lined Contact Surfaces | NACE MR0175 |
| Hygroscopicity | Silica Gel Desiccant Packs | IECEx IEC 60079 |
Organic Fertilizers
Microbial Protection:
Odor Control:
| System | Efficiency |
|---|---|
| Activated Carbon | 99% VOC Removal |
| Ozone Injection | 90% Odor Reduction |
Explosive Materials
| Safety Feature | ATEX Solution | Standard |
|---|---|---|
| Static Control | Ionized Air Curtain (10? ions/cm3) | EN 60079-32-1 |
| Explosion Venting | 8m2 Rupture Discs | NFPA 68 |
| Oxygen Depletion | Nitrogen Inerting (O?<8%) | EN 14756 |
**12" HMI with FertiOS?**
AI-Driven Features:
Quality Sentinel:
| Parameter | Action |
|---|---|
| N-P-K Imbalance >2% | Formula Adjustment |
| Clump Detection | Vibration Intensity +20% |
Preventive Maintenance:
| Component | Alert Threshold |
|---|---|
| Auger Wear | Torque >120% Baseline |
| Filter Saturation | ΔP >0.6bar |
1. Auto Bag Placement → 2. Collar Seal Engagement → 3. Precision Filling (±0.2%) → 4. Dust Extraction → 5. Multi-Mode Sealing → 6. Weight Verification → 7. Palletizing
Cycle Time: 60 seconds/bag
Industry-Leading Performance
? Zero-Dust Guarantee: | **Technology**| **Performance**| |-------------------------|------------------------| | Negative Pressure| -40Pa ±2Pa| | H14 HEPA Filtration| 99.97%@0.3μm (EN 1822) | | Seal Inflation | 0.4s Response Time | ? Precision Agriculture Ready: 1. N-P-K Ratio Preservation 2. Trace Element Integrity 3. 0% Granular Degradation ? Heavy-Duty Construction: - Tungsten Carbide Auger (50,000-Ton Lifespan) - IP69K Washdown Protection - 100,000-Hour MTBF
? ATEX 2014/34/EU Zone 22 ? FDA 21 CFR 110 ? ISO 9001:2015 ? OMRI Listed (Organic Materials)
Yara International Trial:
"After 8 months using FS-8100 for NPK fertilizers:
Output: 35 → 60 Bags/Hour (+71%)
Dust Emissions: 28mg/m3 → 0.9mg/m3 (↓97%)
Material Savings: 2.8% → 0.15%
ROI Period: 6.2 months"
