bag packing machine
This machine is mainly suitable for quantitative filling, filling, and packaging of small particle materials (including various small particles and powders), mixed, irregular, or regular small particl
- Brand：
- Model：

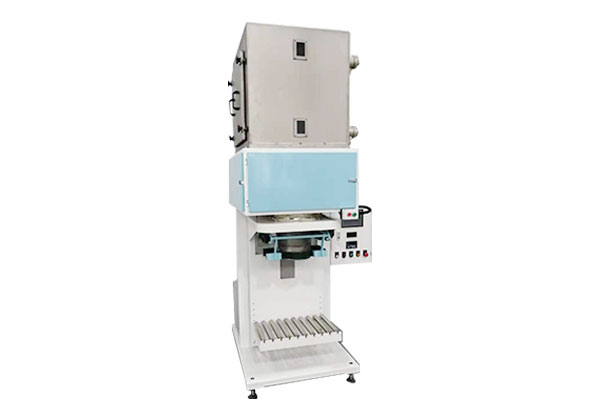

Bag Packing Machine BPM-5000 Series
Precision Engineered for Versatile Packaging
Core Innovation: One System, Infinite Formats
Shanghai Guangzhi BPM-5000 revolutionizes bag packaging with 120 bags/minute throughput and ±0.5mm sealing accuracy. Featuring AI-guided form-fill-seal technology, multi-layer barrier control, and tool-free changeover <3 min, it masters:
? Stand-up pouches (gusseted/flat-bottom)
? Pillow bags (single/multi-lane)
? Quad-seal medical sterile bags
? Vacuum/MAP packaging (O? <0.1%)
Technical Superiority
1. Intelligent Filling & Sealing
| System | Technology | Performance |
|---|---|---|
| AI Vision Dosing | 3D product volume scanning | ±1% fill accuracy (1g-5kg) |
| Pulsed Sealing Jaws | Adaptive temp/pressure control | Seal strength >45N/15mm |
| Material Saver? | Predictive film tension control | 30% film waste reduction |
| Gas Flush System | Dynamic gas mixing (N?/CO?) | Residual O? <50ppm |
2. Zero-Downtime Flexibility
Key Features:
Memory Database: 50+ preset formats (PET/AL/CPP laminates)
Seal Integrity Monitoring:
Parameter Real-Time Feedback Seal temperature ±1°C control (100-250°C range) Contamination Reject if >0.5mm particles
Technical Specifications
| Model | BPM-5100 (Standard) | BPM-5200 (Pharma) | BPM-5300 (Retort) |
|---|---|---|---|
| Speed | 120 bags/min | 80 bags/min | 60 bags/min |
| Bag Size | 50-500mm (W) × 80-800mm (H) | Same | Same |
| Film Thickness | 30-300μm | 40-250μm | 60-400μm |
| Filling Range | 10g-5kg | 5g-2kg | 100g-10kg |
| Gas Flush | N?/CO? (optional) | Sterile air flush | Steam flushing |
| Seal Type | Constant/Impulse | Double seam + notch | Triple seal |
| Power | 380V/50Hz, 6.5kW | 380V/50Hz, 5.5kW | 380V/50Hz, 8.2kW |
| Compliance | CE EN 415-6 | FDA 21 CFR 177.2600 | ISO 11607-1 |
Industry-Specific Engineering
Food & Snacks
IP69K washdown design
Metal detection integration (Fe≥0.3mm)
Oil-resistant sealing jaws
Pharmaceuticals
ISO Class 7 clean air hood
VHP-compatible components
21 CFR Part 11 data logs
Chemicals
ATEX Zone 22 option
Solvent-resistant film path
Static dissipation (<10? Ω)
Pet Food
Heavy-duty auger filling (50mm shaft)
Fat barrier coating system
Odor control vacuum hood
Smart Control Ecosystem
12" HMI with Packaging Intelligence
Key Modules:
Golden Seal Profiling:
Auto-learns optimal temp/pressure curves
Flags deviations >2σ
Predictive Film Management:
Roll diameter monitoring
Splice detection (≤0.1s response)
Carbon Footprint Tracker:
g CO?/bag calculation
Operational Impact
Global Snack Brand Case:
Challenge: 5% seal failures in nitrogen-flushed chips
Solution: BPM-5100 with AI gas flush control
Results:
? 0.02% seal defect rate
? Shelf life extended by 40%
? ROI in 7 months
Certifications & Upgrades
Global Compliance:
CE EN 415-6:2013
FDA 21 CFR 177.1520
ISO 11607-1 (Medical Packaging)
UL 985 (Household Appliances)
Advanced Modules:
| Module | Function |
|---|---|
| Vision Inspection | Print/bar code verification |
| Robotic Case Packing | Auto carton loading (25/min) |
| AR Format Setup | HoloLens-guided changeover |
| VOC Abatement | Activated carbon filtration |
Service Commitment
24/7 Packaging Guardians:
Remote diagnostics via IIoT gateway
Critical Spares Dispatch ≤48h:
Sealing jaws
Film tensioners
Auger assemblies
Performance Validation:
Seal strength tests (ASTM F88)
OTR/MVTR barrier certification
