Functional features:【 Product Settings 】 - Stores weight settings and related filling parameters for various different products, with simple, convenient, and easy to learn operation[Data Statistics] -

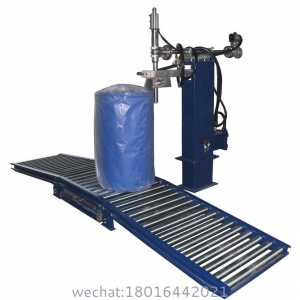

Industrial-Grade 200L Thinner Drum Filling System
ATEX/IECEx Zone 0 Certified ? ±0.25% Gravimetric Accuracy ? VOC Containment Technology
| Component | Technology | Certification |
|---|---|---|
| Ignition Source Control | Pneumatic actuators (zero electrical components) | ATEX 2014/34/EU Cat.1G |
| Containment Enclosure | 304 SS pressurized housing (+50Pa, IP66) | IECEx IEC 60079-2 |
| Gas Detection | Infrared hydrocarbon sensors (5% LEL auto-shutdown) | SIL-2 (IEC 61508) |
| Static Dissipation | Conductive PEEK nozzles (103-10? Ω resistivity) | NFPA 77 Compliance |
Static Control Protocol:
Drum grounding verification (<10 Ω resistance)
Ionized air curtain (10? ions/cm3 density)
Humidity-regulated environment (40-60% RH)
| Parameter | TF-2100 (Standard) | TF-2200X (ATEX Zone 0) | TF-2300P (GMP Grade) |
|---|---|---|---|
| Capacity Range | 180-220L (±0.25%) | 180-220L (±0.3%) | 180-220L (±0.15%) |
| Max Throughput | 22 drums/hour | 20 drums/hour | 18 drums/hour |
| Flow Rate | 150 L/min (±2%) | 130 L/min (±1.5%) | 120 L/min (±1%) |
| Viscosity Range | 0.3-500 cP | 0.5-300 cP | 0.3-200 cP |
| Material Contact | 316L SS + PTFE-lined | Hastelloy C276 + Kalrez?6375 | 316L EP (Ra<0.4μm) |
| Temp Tolerance | -10°C to +50°C | -30°C to +65°C | +5°C to +40°C |
| VOC Control Efficiency | 95% (Carbon adsorption) | 99.5% (Thermal oxidizer) | 99.9% (Cryocondensation) |
| Power Requirements | 380V/3PH/50Hz/4.2kW | 24VDC Ex ia/3.8kW | 380V/3PH/50Hz/3.8kW |
| N? Consumption | 30 L/min @ 0.6MPa | 35 L/min @ 0.7MPa | 25 L/min @ 0.5MPa |
| Cycle Time | 2.7 min/drum | 3.0 min/drum | 3.3 min/drum |
| Footprint (L×W×H) | 2200×1800×2500mm | 2400×2000×2700mm | 2300×1900×2600mm |
| Metric | Industry Standard | TF-2100 |
|---|---|---|
| Solvent Loss/Drum | 120-180 ml | <15 ml |
| VOC Emissions | 250-400 ppm | <5 ppm |
| Changeover Time | 20-30 min | <4 min |
| Calibration Frequency | Weekly | Self-diagnostic (Monthly) |
| Feature | Technical Specification |
|---|---|
| Color-change purge | 3-stage solvent flush (acetone/ethanol) |
| Viscosity compensation | Real-time temp correction (±0.1 cP/°C) |
| Pigment suspension | Pulsed flow technology (5Hz) |
Low-moisture path: <50 ppm H?O
Static-dissipative flow path: <10? Ω resistivity
Fluoropolymer-lined components
| Validation Element | Compliance Standard |
|---|---|
| Surface finish | ASME BPE-2022 (Ra<0.4μm) |
| Cleanability | EHEDG Doc 8 (4-log reduction) |
| Material certification | USP Class VI + FDA 21 CFR 177.2600 |
? ATEX 2014/34/EU Category 1G Zone 0 ? IECEx IEC 60079-0/1/2/7/31 ? ISO 9001:2015 Quality Management System ? FDA 21 CFR 177.2600 (Indirect Food Contact) ? CE EN 13445 Pressure Equipment Directive ? NFPA 77 Static Electricity Control
1. AGV Drum Positioning → 2. Grounding Verification → 3. N? Purging (O?<0.5%) → 4. Submerged Nozzle Insertion → 5. Gravimetric Filling (±0.25%) → 6. VOC Capture Activation → 7. Robotic Lid Sealing
Total Cycle Time: 2.7 minutes/drum
| Service Tier | Key Features |
|---|---|
| Platinum (24/7) | Live IIoT monitoring, Spares depot access |
| Gold | Quarterly preventive maintenance |
| Standard | Annual calibration service |
