Functional features:Product Settings - Store weight settings and related filling parameters for 20 different products, easy to operate and learnMulti stage filling - can be divided into two stages (fa

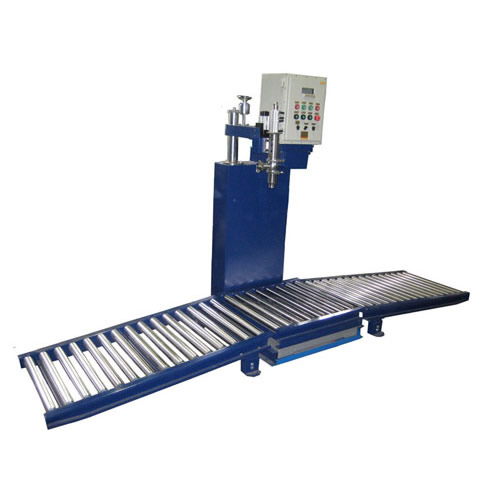

200L Liquid Level Filling Machine
Precision Surface Filling ? Zero Splash ? Multi-Viscosity Adaptability
| Sensor Type | Function | Accuracy |
|---|---|---|
| Radar Level | Non-contact distance measurement | ±0.5mm |
| Capacitive Probe | Liquid dielectric detection | ±0.3% FS |
| Optical Laser | Surface turbulence compensation | ±0.2mm |
Adaptive Filling Modes:
| Parameter | LF-3100 (Standard) | LF-3200H (High-Visc) | LF-3300X (ATEX) |
|---|---|---|---|
| Capacity | 180-220L (±1mm) | 180-220L (±1.5mm) | 180-220L (±1.2mm) |
| Throughput | 30 drums/hour | 25 drums/hour | 28 drums/hour |
| Level Accuracy | ±1mm | ±1.5mm | ±1.2mm |
| Viscosity Range | 1-50,000 cP | 10,000-500,000 cP | 1-100,000 cP |
| Filling Speed | 200 L/min | 120 L/min | 180 L/min |
| Foam Control | Ultrasonic defoamer | Mechanical skimmer | Dual-mode system |
| Material Contact | 316L SS + PTFE | Hardox 400 + Ceramic | Hastelloy C276 |
| Temp Compensation | ±0.1mm/°C | ±0.08mm/°C | ±0.12mm/°C |
| Power | 380V/50Hz, 5.5kW | 380V/50Hz, 7.2kW | 24VDC Ex ia |
| Air Consumption | 150 L/min @ 0.6MPa | 120 L/min | 100 L/min |
| Container Types | Open-head drums | IBCs & Drums | Drums & Jerrycans |
| Challenge | Solution | Performance |
|---|---|---|
| Flammable liquids | ATEX Zone 1 compliance | <0.1% LEL buildup |
| Acid filling | Alloy C276 construction | Corrosion rate <0.01mm/yr |
| VOC emission | Integrated vapor recovery | >99% capture efficiency |
EHEDG-certified surfaces (Ra<0.8μm)
CIP/SIP compatibility (30 min @ 85°C)
Allergen control protocols
| Feature | Specification |
|---|---|
| Skin prevention | N? blanket filling |
| Metallic settling | Pulsed flow agitation |
| Color change | Quick-flush system (120s) |
? ATEX 2014/34/EU (LF-3300X) ? FDA 21 CFR 177.2600 ? ISO 9001:2015 ? CE EN 13445 ? EHEDG EL Class I
復制1. Drum positioning → 2. Auto-lid removal → 3. Surface scanning → 4. Adaptive filling → 5. Foam detection & control → 6. Overfill protection → 7. Vapor recovery → 8. Lid sealing
Cycle Time: 2 minutes/drum
