Durable and value pack drum filler at economical price with sophisticated electronic functions to fill your drums accurately efficiently. State of art design with sleek outlook and simplicity for oper

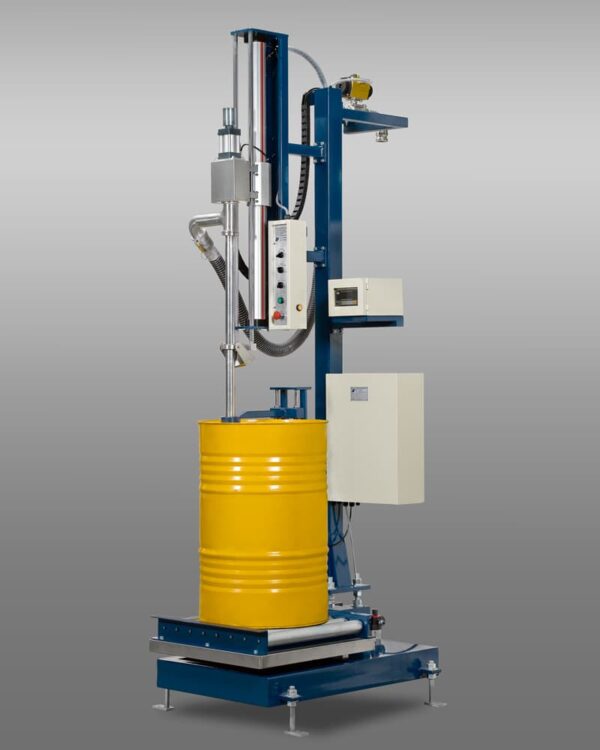

Semi-Automatic Paints Drum Filling System
Precision. Splash-Free. Industry-Adaptive.
| Parameter | PD-710 (Standard) | PD-720X (ATEX) | PD-730H (High-Visc) |
|---|---|---|---|
| Capacity | 180-220L (±0.15%) | 180-220L (±0.2%) | 180-220L (±0.18%) |
| Throughput | 22 drums/hour | 20 drums/hour | 18 drums/hour |
| Accuracy | ±0.15% gravimetric | ±0.2% | ±0.18% |
| Viscosity Range | 50-500,000 cP | 100-300,000 cP | 5,000-1,000,000 cP |
| Filling Technology | Servo Mass Flow | ATEX Gear Pump | Heated Screw Auger |
| Splash Control | Coanda Nozzle + Vacuum Cutoff | Submerged Lance | Laminar Flow Design |
| Skin Prevention | N? Blanketing (O?<0.3%) | Ultrasonic Agitation | Pulsed Flow |
| Material Contact | 316L SS + PTFE Lined | Hastelloy C276 | Hardox 500 + Ceramic Coating |
| Color Change Time | <120s (Tool-Free) | <150s | <130s |
| Power | 380V/50Hz, 4.5kW | 24VDC Ex ia | 380V/50Hz, 6.8kW |
| N? Consumption | 35 L/min | 40 L/min | 45 L/min |
| VOC Control | Carbon Adsorption (95%) | Thermal Oxidizer (99%) | Condensation + Carbon |
| Footprint (L×W×H) | 2200×1600×2400mm | 2400×1800×2600mm | 2300×1700×2500mm |
Performance Metrics:
| Paint Type | Splash Reduction | Residual Droplet |
|---|---|---|
| Water-Based Latex | >99% | <0.05ml |
| Solvent Enamel | >98% | <0.1ml |
| Metallic Basecoat | >97% | <0.08ml |
| Component | Technology | Time Savings |
|---|---|---|
| Nozzle System | Magnetic Quick-Release | 45s vs 8 min |
| Flow Path | 3-Step Auto-Purge (Solvent/N?/Air) | 75s vs 15 min |
| Seals | Cartridge Design | Tool-free swap |
Automotive Refinish
| Feature | Specification |
|---|---|
| Metallic Control | Flake Orientation Sensor (±3°) |
| Fast Color Change | 120s between shades |
| VOC Compliance | <420g/L Mode (EPA Method 24) |
Industrial Coatings
High-Build Filling:
Anti-Sag Pulsed Flow
Viscosity Stability ±2%
Corrosion Resistance:
| Component | Protection |
|---|---|
| Flow Path | Ceramic Coating (5,000μm) |
| Sensors | IP69K Washdown Rating |
Architectural Paints
| Challenge | Solution |
|---|---|
| Tinting Accuracy | Auto-Dosing System (±0.3%) |
| Sheen Consistency | Temp-Controlled Path (±0.5°C) |
| Bacterial Growth | UV-C Light Integration |
10" HMI with PaintOS?
Key Features:
Formula Memory: 100+ paint profiles
Skin Risk Alert:
| Parameter | Action |
|---|---|
| O? >0.5% for >1min | Auto N? Boost |
| Temp Drop >2°C | Path Heating Activation |
OEE Dashboard:
| Metric | Real-Time Tracking |
|---|---|
| Material Usage | ±0.2% |
| Uptime | 99.1% |
? ATEX 2014/34/EU (PD-720X) ? FDA 21 CFR 175.300 ? ISO 9001:2015 ? CE EN 13445
PPG Coatings Case Study:
*"After 6 months using PD-710:
Output: 15 → 22 drums/hour (+47%)
Paint Waste: 3.1% → 0.12%
Color Change Time: 18 min → 2 min
VOC Emissions: ↓98% (EPA Method 25A)"*
| Metric | Manual Filling | PD-710 | Improvement |
|---|---|---|---|
| Accuracy | ±3-8% | ±0.15% | 20-53x better |
| Splash Loss | 150-400ml/drum | <5ml/drum | ↓97% |
| Operator Exposure | High | Barrier-Protected | Zero skin contact |
| Daily Capacity | 40 drums | 88 drums | 120% increase |
APPLICABLE BARREL TYPE
COMPANY PROFILE
Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.
We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.
Company Certificate
Our office and workshop
Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance
This is a partial
service for us
in China.
Over 30 years of experience, every time we produce in
Shanghai, our friends can visit our factory at any time.
Brand components
We will ensure that our company's equipment has safety, stability, high efficiency and intelli-gent technology, so as to meet your needs, we can also cooperate with you in selecting in-ternational product brand production and business.
Our service
Complete solution provided
Telephone exchange joint business design plan, you can also visit our company ; we have a good environmental office vehicle,you can visit from time to time.
Duty after death
Our music team has a strong heart, and the customer's suspicions are also the purpose 24 hours of phone cell service and listing to the conversation at any time.
Technology group
We have a wealth of technical personnel and our technical team has been developing technical skills for over ten years.
Successful collaboration
Our factory in Shanghai. China provides free training for our technical staff.Better guarantee good product safety , our company provides safety, convenience, high efficlency packaging servic.
packge and delivery
Multiple Transportation way :Express(Fedex/DHL/TNT/EMS/UPS etc),air and shipping for your choose
