1-5L paint coating Filling machine

1-5L /10-20L paint coating Filling machineA piston filling machine is a type of filling machine that fills high concentration fluids. It uses a three-way principle of a piston and a rotary valve drive

  • Brand:
  • Model:

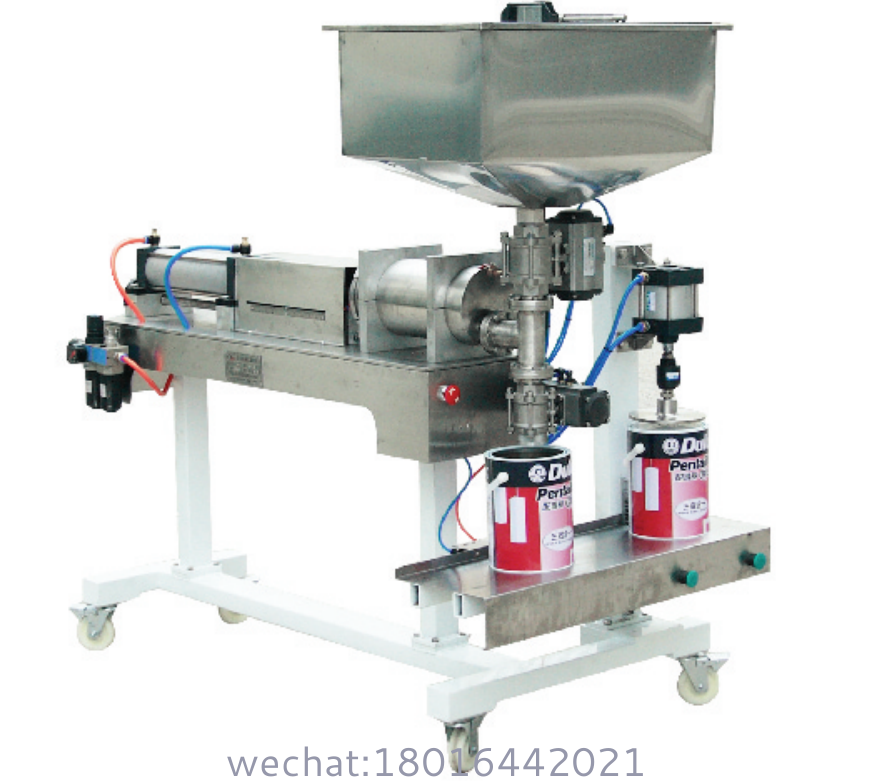

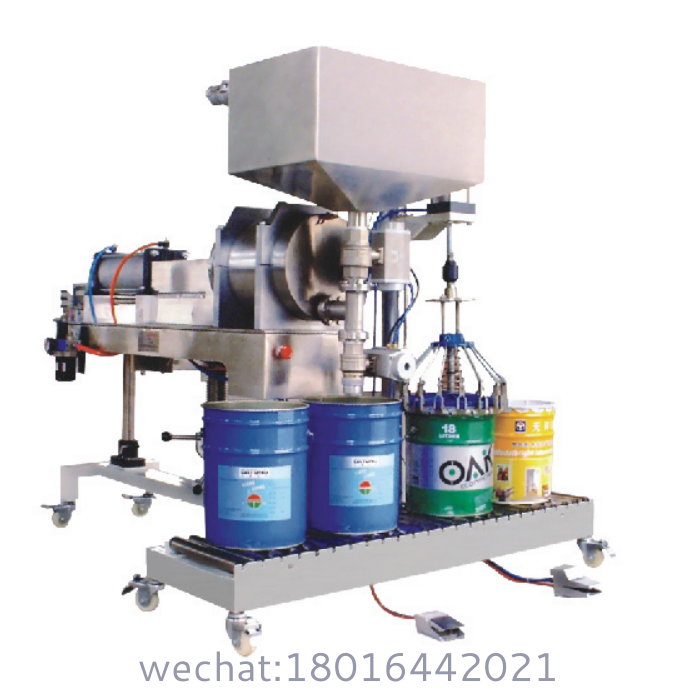

1-5L /10-20L paint coating Filling machine

A piston filling machine is a type of filling machine that fills high concentration fluids. It uses a three-way principle of a piston and a rotary valve driven by a cylinder to extract and dispense high concentration materials. The stroke of the cylinder is controlled by a magnetic spring switch to adjust the filling amount.


1. Applicable to industries such as food, medicine, daily chemical, pesticide, etc

2. This device has the characteristics of compact and beautiful design, simple and easy to understand operation, and high accuracy.

3. This machine adopts a special three-way filling valve, which achieves material filling through the reciprocating motion of the cylinder, making it an ideal alternative equipment for manual operations.

4. The material contact part is made of 316L stainless steel material, which meets GMP requirements. For highly corrosive liquids, the contact part of the material is made of polytetrafluoroethylene material to ensure the long-term stable operation of the equipment.

5. The filling volume and filling speed can be adjusted arbitrarily, with high filling accuracy.

6. The filling head adopts anti drip, anti drawing, and lifting filling devices.


1. Number of filling heads: 1-6 heads

2. Filling capacity: 40ml-5000ml/  10-20L

3. Power supply: 220V/50HZ 0.1Kw

4. Filling error: ≤ ± 1%

5. Production speed:  (calculated based on 100ml of water as the medium)

6. Boundary dimension: 1000mm × 500mm × 1200mm

7. Machine weight: 100 kg

8. Gas source requirements: A stable 0.55MPa-0.65Mpa gas source


Suitable for various industries such as daily chemical, pharmaceutical, food, pesticide, etc
