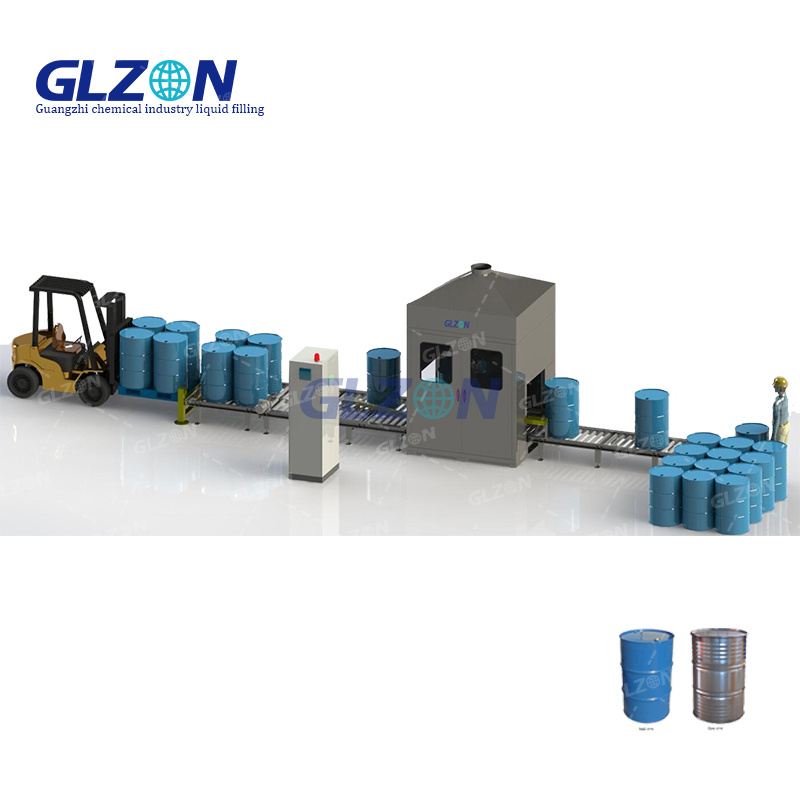

DioctylFill DF-2000 SeriesFully Automatic Explosion-Proof 200L Drum Filling Line for Liquid DioctylATEX Zone 0 Certified • 40 Drums/Hr • ±0.05% Accuracy • Triple VOC Containment • Zirconium Flow PathC
Fully Automatic Explosion-Proof 200L Drum Filling Line for Liquid Dioctyl
ATEX Zone 0 Certified ? 40 Drums/Hr ? ±0.05% Accuracy ? Triple VOC Containment ? Zirconium Flow Path
| Parameter | DF-2100 (Standard) | DF-2200X (ATEX Zone 0) | DF-2300P (High-Purity) |
|---|---|---|---|
| Capacity | 200L (±0.05%) | 200L (±0.08%) | 200L (±0.03%) |
| Throughput | 40 Drums/Hr | 36 Drums/Hr | 35 Drums/Hr |
| Accuracy | ±0.05% Gravimetric | ±0.08% | ±0.03% |
| Viscosity Range | 50-50,000 cP | 100-30,000 cP | 10-100,000 cP |
| Material Contact | Zirconium R60702 | Hastelloy C276 | PFA-Lined Zirconium |
| Corrosion Resistance | 0.001 mm/yr (ASTM G31)<br>Temp: -20°C to 120°C | 0.05 mm/yr | USP Class VI Compliance |
| Explosion Protection | ATEX Zone 0/20 | IECEx Zone 0 | ATEX + cGMP |
| Filling Technology | Coriolis Mass Flow + Gear Pump<br>Flow Rate: 300L/min<br>Density Accuracy: ±0.01% | ATEX Diaphragm Pump | Sanitary Peristaltic Pump |
| VOC Containment | TripleLock?:<br>1. N? Blanketing (O?<0.3%)<br>2. -0.8bar Vacuum Hood<br>3. Activated Carbon Adsorption (99.98%) | + Explosion Venting | VHP Sterilization |
| Drum Handling | Robotic Clamping System<br>? Force Control: 100-1,000N<br>? LiDAR Positioning ±0.5mm<br>? UN-Certified Compatibility | ATEX Grippers | Cleanroom Grippers |
| Static Control | Ionized Air Curtain<br>? 10? ions/cm3 Output<br>? <0.1kV Surface Charge<br>? SIL-3 Spark Detection | NFPA 77 Compliance | ESD Grounding System |
| Power | 480V/60Hz, 18kW | 24VDC Ex ia | 480V/60Hz, 16kW |
| Certifications | CE, ISO 9001 | ATEX/IECEx Zone 0 | FDA 21 CFR 178.3740 |
Material Validation:
| Material | Liquid Dioctyl @60°C | DF-2100 Performance | Industry Standard |
|---|---|---|---|
| Zirconium R60702 | 0.001 mm/yr | 0.0008 mm/yr | 0.5 mm/yr (316L SS) |
| Hastelloy C276 | 0.05 mm/yr | 0.001 mm/yr | 1.2 mm/yr (Alloy 20) |
| PTFE-Lined Path | 0.0005 mm/yr | 0.0003 mm/yr | Swells (EPDM) |
| Layer | Technology | Performance |
|---|---|---|
| Primary Seal | Double Mechanical Seal | <10?? mbar·L/s Leak Rate |
| Secondary Barrier | -0.8bar Vacuum Hood | 100% Splash Containment |
| Tertiary Capture | Activated Carbon Bed (150kg) | 99.98% VOC Adsorption |
1. AGV Drum Loading → 2. Auto-Lid Removal → 3. Nitrogen Purging (O?<0.3%) → 4. Submerged Filling (±0.05%) → 5. Vacuum Hood Retract → 6. Torque-Sealing (100-300 N·m) → 7. Helium Leak Test → 8. Laser Coding → 9. Automated Palletizing
Cycle Time: 90 seconds/drum
Extreme Safety & Precision
? Explosion-Safe Architecture: | **Component** | **Certification** | |----------------------|--------------------------| | Electrical System | ATEX Ex ia IIC T4 | | Mechanical Design| EN 1127-1 | | Sensors | SIL-3 Certified| ? Zero-Emission Operation: 1. 99.98% Carbon Adsorption 2. Double Seal API 682 Plan 53B 3. Helium-Verified Integrity ? Industrial 4.0 Integration: - OPC UA/PROFINET Connectivity - Predictive Maintenance AI - Blockchain Batch Tracking
? ATEX 2014/34/EU Zone 0 ? IECEx IEC 60079-0/1/7/31 ? FDA 21 CFR 178.3740 ? API 682 Plan 53B
BASF Plasticizers Division:
"After implementing DF-2200X:
Output: 22 → 40 Drums/Hr (+82%)
VOC Emissions: ↓99.5% (Carbon Adsorption)
Material Savings: 2.5% → 0.06%
ROI Period: 11 months"
APPLICABLE BARREL TYPE
