Tomato Sketchup Sauce Jar Filling Machine

2025-06-11 16:05:30 glzon

Sauce Jar Filling Machine

Basic Info.

Type
Weighing-type Filling Machine
Automatic Grade
Fully Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Multi-Room Feeding
Dosing Device
Capacity Cup
Filling Principle
Pressure
Packaging Container Lifting Structure
Pneumatic Lifting
Structure
Linear
Packaging
Barrel
Packaging Material
Wood
Application
Food, Beverages, Daily Necessities, Chemicals
Barrel Form
Pail, Can, Bottle, etc.
Core Components
Pressure Vessels, Pumps, Plcs, Gears, Bearings
Suitable Material
Coatings, Inks, Paints, Asphalt, Glue, Lubricants
Transport Package
Wooden Case
Specification
3900*1000*1700mm
Trademark
GLZON
Origin
Shanghai, China

Product Description

Automatic Multi-Head Pails Epoxy Resin Storage Filling Line for 10-30L
Tomato Sketchup Sauce Jar Filling Machine
Product Description

Introduction

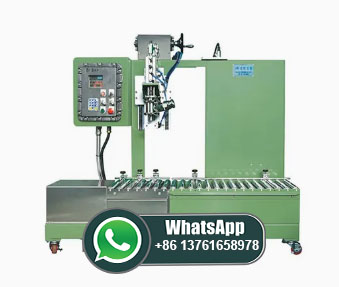

Liquid filling line is a highly automated packaging equipment, whose main function is to automatically fill liquid materials into predetermined weights. The liquid filling line can effectively prevent material overflow during the filling process, effectively prevent material pollution to the environment, and provide effective labor protection for operators. Its system works stably and reliably, with simple operation and precise filling. The filling line mainly consists of a filling gun device, PLC system control part, weighing system, filling rack, conveying equipment, etc.

Tomato Sketchup Sauce Jar Filling Machine
Tomato Sketchup Sauce Jar Filling Machine

Product Features
1.For the filling of square barrels and drums below 100kg, the system adopts programmable PLC control, with full Chinese guid- ance and easy operation;
2.The filling head extends into the barrel mouth and automatical- ly exits when filling is completed. If the filling head is not aligned with the barrel mouth, it will automatically return;
3.The filling gun is made with integral technology to prevent dripping and splashing; the quick-release connector is easy to disassemble and clean;
4.The system target value can be set freely, and the height of the filling gun is adjustable, suitable for rapid filling of packaging barrels of various specifications;
5.Equipped with a large and small ball width group and a double-stage filling gun, the four-stage filling design of large, medium, small and trace quantities makes filling more accurate;
6.Filling is prohibited without a bucket on the weighing platform, and differential pressure zero-time bucket collision protection is provided;
7.Net weight/gross weight (automatic tare for each barrel) Two filling methods are automatically selected;
8.One-click operation, easy to use; multiple windows display filling volume, number of barrels, cumulative volume and other information;
9.There is a signal indicator light for real-time display, and an automatic alarm if the deviation is exceeded;
10.It has good stability,reduces losses,saves costs,improves operating efficiency and reduces manual operation pressure.
Product Parameters

Tomato Sketchup Sauce Jar Filling Machine

Product Parameters
ModelGZM-30AUTOCL-2PT
Filling range10-60kg
PowerAC220V±10%50hz
Air source0.5mpa
Applicable materialsCoatings, inks, paints, asphalt, glue, lubricants, petrochemicals, fine chemicals and other liquids
Filling accuracy0.02%
Speed(can/min)6-10 barrels (1000L)
Filling station2
Materialsus304/316
Installation Instructions
Main structure and working principle

1.Computer quantitative filling machine has feeding system, weighing system frame pneumatic control control system without power raceway and so on.

2.Feeding mode: the requirement of continuous and stable feeding (feeding pump pressurized feeding) feeding mechanism by solenoid valve through the cylinder to perform fast and slow feeding.

3.Filling method: ordinary conventional filling and lifting and diving filling (according to the needs of the order to choose).

4.The weighing platform is equipped with unpowered roller and frame support and filling system pneumatic control system: control fast and slow feeding valve in the process of using the weighing platform is not allowed to be subjected to additional external forces.
Tomato Sketchup Sauce Jar Filling MachineTomato Sketchup Sauce Jar Filling Machine
How to operate

1.During operation, as long as the empty barrel is installed on the empty barrel pipeline line, it will automatically stop and the nozzle device automatically places the empty barrel directly below the nozzle of the nozzle.

2.After entering the barrel mouth, the empty barrel is automatically tared, and then the specific gravity is determined accurately at two speeds.

3.The spray valve automatically connects to the outside of the barrel, enters the full barrel pipeline, and reaches the capping position.

4.The piping machine stops, the cap is placed manually, the capping machine is pulled down to cap, and the weight is completed.
Company Profile
Tomato Sketchup Sauce Jar Filling Machine
Company Profile
Shanghai Guangzhi Automation Equipment Co., Ltd.wasestablished in 2010 as a high-tech enterprise.lt is an enter-prise integrating R&D, production, sales and service, specializingin the digitalindustrialization ofliquid pumping machin-ery.The companyis committed to industrial digital services inthe food, chemical and pharmaceuticalindustries, and devel-ops and produces various barrel loading and dividing ma-chines, extractingmachines, capping machines, capping machines, robot palletizers and related automation equipment,which are widely used in Syrup, food, real stone paint, latexpaint, water paint, paint, resin, etc., with a complete intelli-gent control system, greatly improve the efficiency.
Our Advantages

Why choose us

1. Packaging solution
we provide professional packaging and logistic service for your option. With plenty of experience and carefully treatment, we make sure the machinery delivery to you is good useful.

2. Pre-sale Service.
pre-sale service will provide by our sales engineers and electrical engineers. offering complete bundle of packaging solutions and professional rationalization proposals and pre-sale testes.

3. After-sale service
we provide free parts and parts delivery, when manufacture defects has been detected during normal operation(vulnerable parts not included)under warranty period(one-year warranty )as well as after-sale service of low cost.

Free training course will be given to your technician at our factory site in Shanghai China.
Tomato Sketchup Sauce Jar Filling Machine
Certifications

Tomato Sketchup Sauce Jar Filling Machine

FAQ

Q1: Are you manufacturer?
A: Yes. We have more than 10 years of manufacturing and exporting experience. We are proud to be the first batch of Chinese manufacturers devoted in large format printers.

Q2: How to buy?
A: Simply contact our sales expert and inform your demands, request for a Proforma Invoice. The order will be shipped after the invoice get paid.

Q3: How can I trust you?
A: Always warmly welcome for visiting our factory. Or have video call. Or arrange any of your friend to come and help you check your goods. Or place order through ****** Trade Assurance Order. Or any other good idea you can feel free to inform. We will do our best to cooperate. We are serious supplier in this industry for long time. You can always rely on us.

Q4: How to send goods to my place?
A: We have regular reliable forwarder agent, can send goods to you by sea, by air, by DHL Express, or if you have agent, we can send to their warehouse in China.
And if you want to combine our products with other items you bought from other supplier, we would also be happy to help.
If you are new for importing, feel free to contact us. We will help check the most suitable transportation method for you.

Q5: How is your warranty?
A: 12 months trouble-free warranty. During warranty period, electric parts are covered with warranty. Users send back defective parts and we send the new one for replacement. Warranty can be up to 3 years if you apply for the warranty extending plan. For more information, please feel free to contact our sales people.

Q6: How is your technical support?
A: We provide 12 months trouble-free warranty and lifetime online support through Whatsapp/ Skype/ Wechat/ Email / Remote Assistant- Teamviewer.
From Monday to Sunday, 9am to 9pm. No need to worry about the technical support due to time difference.
Onsite support also available.

Packaging & Shipping

Shipping Scenario and   Component Brand


Tomato Sketchup Sauce Jar Filling Machine
Tomato Sketchup Sauce Jar Filling Machine

 Special note

Note: Our company reserves the right to update product designs and speci?cations at any time. The product information description on this page does not constitute any guarantee or commitment, and is not regarded as a product or service contract term.
